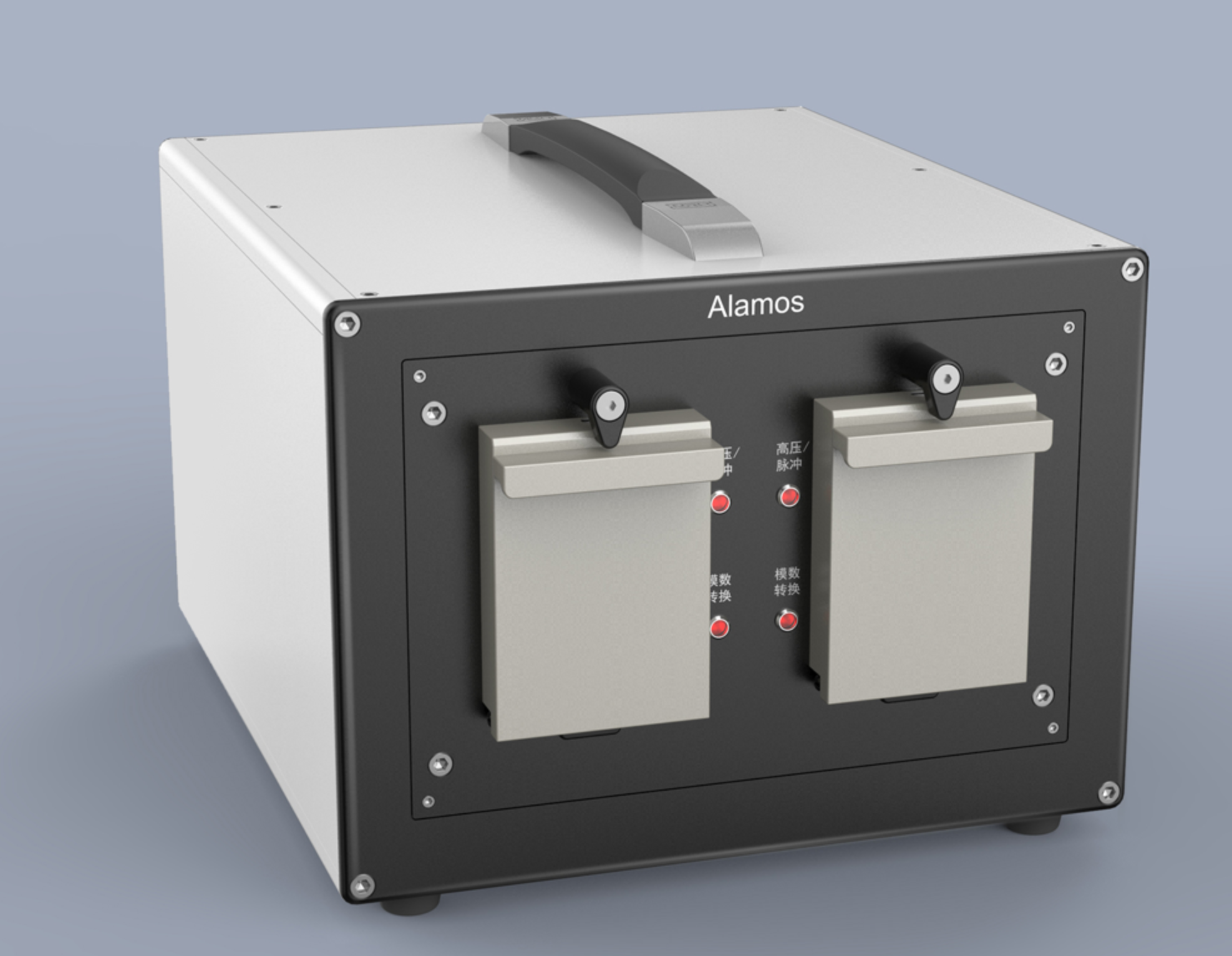

ALAMOS Alpha Spectrometer

Product Description:

Alpha spectrometer is one of the most important laboratory measurement instruments for quantitatively measuring alpha content in samples. The ALAMOS alpha spectrometer includes a single to multiple serial spectrometer based on NIM plugins/desktops; It can also be cascaded to form any spectrograph array according to user needs. The AlphaSense spectral analysis software developed in collaboration with the company can be used for spectrometer control and energy spectrum analysis. Multiple communication methods meet the usage needs of different scenarios.

Hardware Features:

-Detector：The interface is compatible with all mainstream PIPS detectors

-Measure area：300mm2-2000mm2；

-Measuring chamber：Suppression of recoil pollution；

-Sample Tray: Distance can be adjustable,the adjustment accuracy: 4mm;

-Vacuum real-time display, display range：0-26kPa;

-MCA：Digital Multichannel，512，1024，2048，4096 channel adjustable；

-Bias：0-180V Digitally adjustable，adjustment accuracy: 0.2V；

-Leakage Current Monitoring：With detector leakage current monitoring function，Measurement range：1~150nA，measurement accuracy：＜2nA；

-Electronic peak generator：With the function of electronic peak generator, the electronic peak amplitude can be adjusted；

-Equipped with virtual oscilloscope function

-Communication Interface：USB，RS232，Ethernet；

Software Features:

-Taking into account the parameter setting and energy spectrum acquisition；

-With energy scale and efficiency scale；

-Built-in standard nuclide library, users can choose user nuclide library；

-Built-in α spectrum analysis algorithm；

Spectrometer Performance:

-Energy range：3-10MeV；

-Background counting rate：<1个/h（3-10MeV）；

-Energy resolution：FWHM≤18keV@5.486MeV (Detector: 300mm2, Distance between detector and source=Detector Diameter)；

-Working temperature：0~40℃;

-Humidity：10%~80%.
