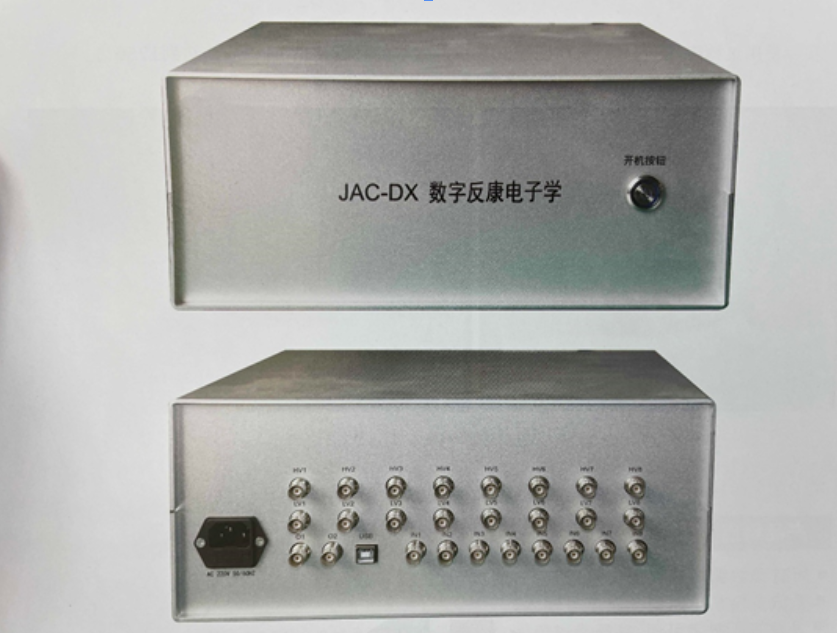

JAC-DX Digital Conformance Anti-Conformance Electronic System

Product Introduction

JAC-DX multi-channel coincidence anti-coincidence electronic system is mainly designed for anti-cone cosmic ray & gamma; spectrometers, and can also be used in various scientific installations that require coincidence anti-coincidence experiments. The product has built-in highly integrated electronic circuits, including linear amplifier, baseline restorer, single-channel pulse amplitude discriminator, delay stretcher, high voltage power supply, low voltage power supply and conformity and anti-conformity output. Compared with the traditional NIM plug-in products, digital technology is adopted, which makes the equipment more flexible to use, higher stability and greatly reduces the failure rate during operation. It is an ideal product to replace the traditional NIM plug-in anti-in system.

Product Features

14. are controlled by the upper computer, which is convenient and flexible, and the key parameters are saved to the host;
14. system supports from single to multiple signal inputs;
14. Multi-channel high-voltage digital adjustable, high-voltage step value is 1V, high-voltage adjustment range is 0~1200V or 0 ~-1200V;
14. Provide single or multi-channel low-noise low-voltage power supply for the front discharge of the probe, and the output low voltage is 12V;
14. Built-in multi-channel low noise linear amplifier;
14. built-in multi-channel filter forming unit, fully improve the signal-to-noise ratio of the detector;
14. Built-in baseline recovery unit to ensure the stability of the baseline under high count rate;
14. digital single channel, single channel threshold software adjustable;
14. digital delay stretching unit, delay time: 0.05us ~ 100us;
14. digital stretching unit, stretching time: 0.05us ~ 500us;
14. input power: AC220V.
