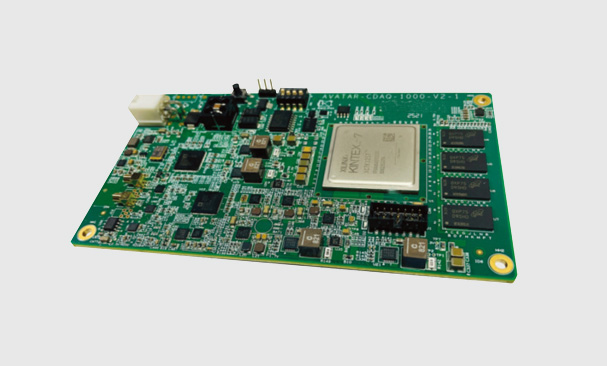

JHS-50 High-Speed Data Acquisition Card

Description:

JHS-50 High speed Data acquisition Card adopts digital waveform full sampling technology and uses a dual-channel, 14-bit high-speed ADC with a sampling rate of up to 1GHz. Internally integrated waveform screening unit, trapezoid shaping unit, time detection unit, Gaussian pulse amplitude extraction unit, digital clock synchronization unit, digital I/O expansion unit, etc.

This acquisition card has been widely used in various measurement systems that require high-speed acquisition and readout. It is suitable for the fields of energy spectrum measurement, neutron time-of-flight spectrometers, particle identification, etc. It can also be expanded to various non-nuclear fields applications that require high-speed data acquisition.

Product Features:

-Dual-channel 1GHz,14-bit high-speed ADC ；

-Internal integration: analog multi-channel (MCA) unit, digital trapezoidal shaping (DMCA) unit, waveform screening (PSD) unit, time measurement (CFD+TDC) unit, gate unit, configurable I/O port, etc.;

-Time detection accuracy：＜30ps；

-Supports energy spectrum mode and LIST mode data transmission;

-High-precision dedicated clock chip with reserved clock synchronization interface;

-Reserved for expandable USB, 100M/1000M Ethernet, 10G optical module,

-RS232 and other communication interfaces;

-Modular design, two core boards can be placed in a single NIM chassis to form a 4-channel 1GHz acquisition system;

-System power supply: +12V;

-System power consumption:＜15W;

-Open all software interfaces to facilitate secondary development by users;

-Software and hardware functions can be customized according to needs.
