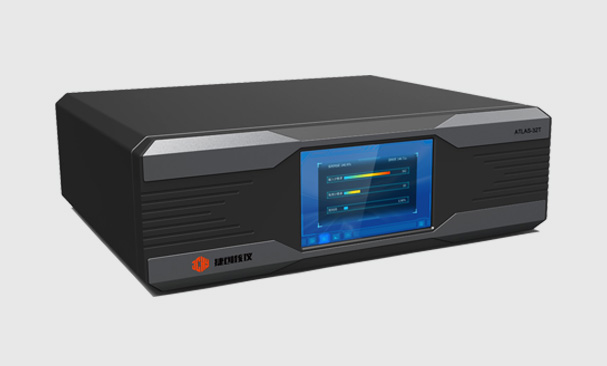

ATLAS-32T/DT Digital Spectrometer

Description:

ATLAS-32T/DT is a desktop low noise high performance single/Dual 32K channel digital  spectrometer. This spectrometer system supports almost all types of detectors, like HPGE, NaI, LaBr3, Cd(Zn)Te.

It internally integrates signal polarity adjustment unit, fast analog-to-digital conversion (ADC) unit, automatic pole/zero cancellation unit, digital baseline recovery unit, digital pulse shaping unit, and digital anti-compton/anti-cosmic interface unit for advanced applications. The system can be directly called and read through the GammaSense spectral analysis software.

Equipped software GammaSense is a complete spectrum analysis software that can show the activity of radioactive samples in real time. The software also has multiplet resolution capabilities and can analyze complex energy spectra. The results are given in the form of a report. , users can print it out directly through the printer.

Features:

--Two versions: Single-channel(ATLAS-32T) and Dual-channel(ATLAS-32DT);

--Input signal can be positive or negative, supporting RC feedback preamplifier and TRP reset preamplifier;

--Conversion Gain: 512~32768 channels;

--Eight-level coarse gain adjustable on software;

Max coarse gain: x128, 0.5~1.2 fine gain software adjustable;

--Shaping time software adjustable, Rise time: 0.8us~24us, flattop time: 0.1~2.4us, step: 0.1us;

--Support external clock synchronization input, array measurement system can be built;

--Automatic pole zero, automatic optimization;

--Noise suppression level adjustable, gated baseline recovery type adjustable;

--Programmed high-voltage: ±500V~±5KV

--Integrated digital gating port, can build digital anti-con/anti-universe system;

--Integral non-linearity <±0.02%, differential non-linearity: <±0.8%;

--Count pass rate: 100Kcps;

--Built-in virtual oscilloscope;

--5-inch touch screen design;

--Support dual energy spectrum display, original spectrum/coincidence spectrum/anti-coincidence spectrum can be selected and displayed;

--Support continuous mode and LIST mode data transmission;

--Reserved synchronization interface, support synchronization function between multi-channel spectrometers or dual-channel spectrometers;

--Support preamplifier power supply voltage monitoring, support high voltage module voltage and current monitoring;

--Stability: 72-hour zero peak drift:<1 channel, 72-hour gain instability:<0.2%;

--Zero temperature coefficient:<0.2channel/℃; Gain temperature coefficient: < 0.1%/℃;

--Communication interface: USB3.0/network port/wireless;

--Support SD card, can store or export data;

--Size: 46 X 38 X14cm,

--Weight:<15kg;

--Power supply: 220V AC input, power consumption：<40W.
